1/4" Single Expansion Anchor, 100/Box
-24%

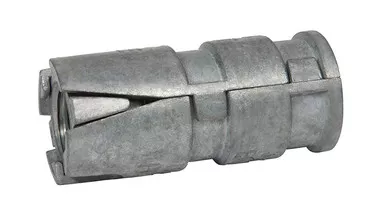

1/4″ Single Expansion Anchor, 100/Box

in hot sale
Sku: SE14

$31.57 Save:$10.00(24%)

Category:
Description

Products Features

  • PRE-ASSEMBLED:  Ready to install; convenient; no setting​ ​tools required
  • READILY ACCEPTS MACHINE BOLTS:  Any coarse threaded bolt can be used; flexible use
  • INTERNAL THREADS:  Bolt can be removed easily
  • BOLT​ ​EXPANDS ANCHOR:  No need for setting​ ​tools; fast and easy to install
  • CAN BE INSTALLED IN CONCRETE, BRICK OR BLOCK:  Versatile anchor choice for most masonry applications and environments

Products specifications

Bit Size  1/2″
Box Qty  100
Minimum Embedment  1-3/8″
Thread Type  1/4″ – 20
Minimum Edge Distance  2-1/2″
Minimum Fixture Hole Diameter (In Place)  9/16″
Minimum Fixture Hole Diameter (Hole Spotted)  1/4″
Inside Anchor Diameter-Bolt Diameter  1/4″
Outside Anchor Diameter  1/2″
Internal Thread Length  5/16″
Brand Name  CONFAST®
Minimum Spacing  5″
Maximum Torque  5 ft./lbs.
Bolt Length  Fixture Thickness + Embedment Depth
2000 PSI Concrete – Pull-Out (lbs.) *  131
Length Measurement  End to End
Diameter  1/4″
Length  1-3/8″
Material  Zamac
Environment  Moist
Type  Female

* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working loadInstallation Video Installing a 1/4″ Single Expansion Anchor

  1. Drill a 1/2″ hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
  2. The depth of the hole can be deeper or equal to the minimum embedment depth of 1-3/8″ which is equal to the length of the anchor .
  3. Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
  4. Insert the anchorwith its threaded end first into the hole.
  5. Place the fixture over the 1/4″ Single Expansion Anchor, insert a 1/4″ diameter bolt through the fixture and into the 1/4″ Single Expansion Anchor.
  6. Use a wrench to turn the anchorclockwise until tight or maximum torque value 5 ft. lbs. is reached.
  7. Always use proper personal protective equipment per manufacturer’s and OSHA instructions.
