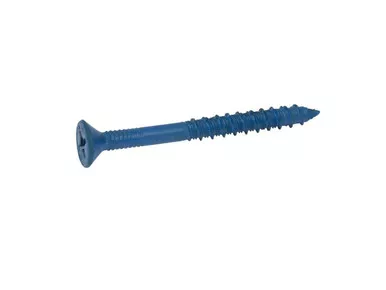

1/4" x 5" Flat Phillips CONFAST Concrete Screw, 100/Box
-38%

1/4″ x 5″ Flat Phillips CONFAST Concrete Screw, 100/Box

in hot sale
Sku: CSF145

$17.99 Save:$12.00(38%)

Category:
Description

Products Features

  • COMPLETE ​LINE:  Ensures ​correct ​product ​can ​be ​located ​and ​purchased ​for ​any ​job
  • ALL ​LENGTHS ​ARE ​AVAILABLE:  Using ​the ​correct ​length ​screw ​ensures ​quality, ​secure ​fastening
  • SPECIAL ​THREADS: Decreases ​installation ​torque ​allowing ​screw ​to ​be ​installed ​faster and ​easier
  • TWO​ ​DIAMETERS:  ​3/16″ ​and ​1/4″ Choice ​allows ​for ​wider ​variety ​of ​fastening ​applications depending ​on ​the ​hole ​in ​the ​fixture ​being ​attached
  • BIT ​INCLUDED ​IN ​EACH​ ​BOX:  Using the correct ​bit ​will give you ​better-​holding ​values

Products specifications

Bit Size  3/16″
Box Qty  100
Minimum Embedment  1″
Thread Type  High-Low
Minimum Edge Distance  3″
Maximum Fixture Thickness  3-1/2″ to 4″
Minimum Fixture Hole Diameter (In Place)  5/16″
Minimum Fixture Hole Diameter (Hole Spotted)  5/16″
Brand Name  CONFAST®
Driver Size  3
Minimum Spacing  4″
Thread Length  1-3/4″
2000 PSI Concrete – Pull-Out (lbs.) *  562
2000 PSI Concrete – Shear (lbs.) *  675
Length Measurement  Overall length including head
Diameter  1/4″
Length  5″
Material  Carbon Steel – Blue Coated
Environment  Dry
Type  Male

* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load Application Video Installation Video Installing a 1/4″ x 5″ (five inches) Flat Phillips CONFAST® Concrete Screw

  1. Drill a 3/16″hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
  2. Drill the hole a 1/2″ deeper than the anchorwill penetrate the concrete, making sure the minimum embedment requirements of 1″ is met.
  3. The hole can be drilled while the fixture is in place. The minimum hole in the fixture for the 1/4″ x 5″ (five inches) Flat Phillips CONFAST® Concrete Screw is 5/16″.
  4. Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
  5. Insert the point of the 1/4″ x 5″ (five inches) Flat Phillips CONFAST® Concrete Screw into the hole. Make sure that the screw being installed will penetrate the base material a minimum of 1″ but no deeper than 1-3/4″.
  6. Using a 3 bit tip Phillips bit tip for the anchor , turn the screw clockwise, applying slight pressure until the head of the screw is snug against the material being fastened.
  7. Always use proper personal protective equipment per manufacturer’s and OSHA instructions.
