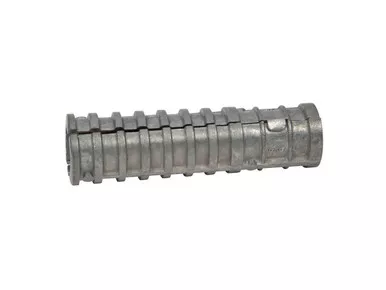

Products Features
- EASY TO INSTALL: Fast, secure installation
- EASY TO REMOVE: Simply turn clockwise and back the screw out of the hole
- ONE PIECE DESIGN: No nuts or washers the anchor comes complete
Products specifications
| Bit Size | 5/8″ |
| Box Qty | 50 |
| Minimum Embedment | 2-1/2″ |
| Thread Type | 3/8″ – 7 |
| Minimum Edge Distance | 3-1/8″ |
| Minimum Fixture Hole Diameter (In Place) | 3/4″ |
| Minimum Fixture Hole Diameter (Hole Spotted) | 3/8″ |
| Inside Anchor Diameter-Bolt Diameter | 3/8″ |
| Outside Anchor Diameter | 5/8″ |
| Internal Thread Length | 1-1/2″ |
| Brand Name | CONFAST® |
| Maximum Torque | 10 ft./lbs. |
| Bolt Length | Fixture Thickness + Embedment Depth |
| 2000 PSI Concrete – Pull-Out (lbs.) * | 555 |
| Length Measurement | End to End |
| Diameter | 3/8″ |
| Length | 2-1/2″ |
| Material | Zamac |
| Environment | Wet |
| Type | Female |
* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working loadInstallation Video Installing a 3/8″ Lag Shield Anchor Long
- Drill a 5/8″hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
- The depth of the hole can be deeper or equal to the minimum embedment depth of 2-1/2″ which is equal to the length of the anchor .
- Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
- Insert the anchorin the hole with the closed end of the lag shield inserted first.
- Place the fixture over the 3/8″ Lag Shield Anchor Long, insert a 3/8″ diameter lag screw through the fixture and into the 3/8″ Lag Shield Anchor Long.
- Use a wrench to turn the lag screw clockwise until tight or maximum torque value 10 ft./lbs. is reached.
- Always use proper personal protective equipment per manufacturer’s and OSHA instructions.
